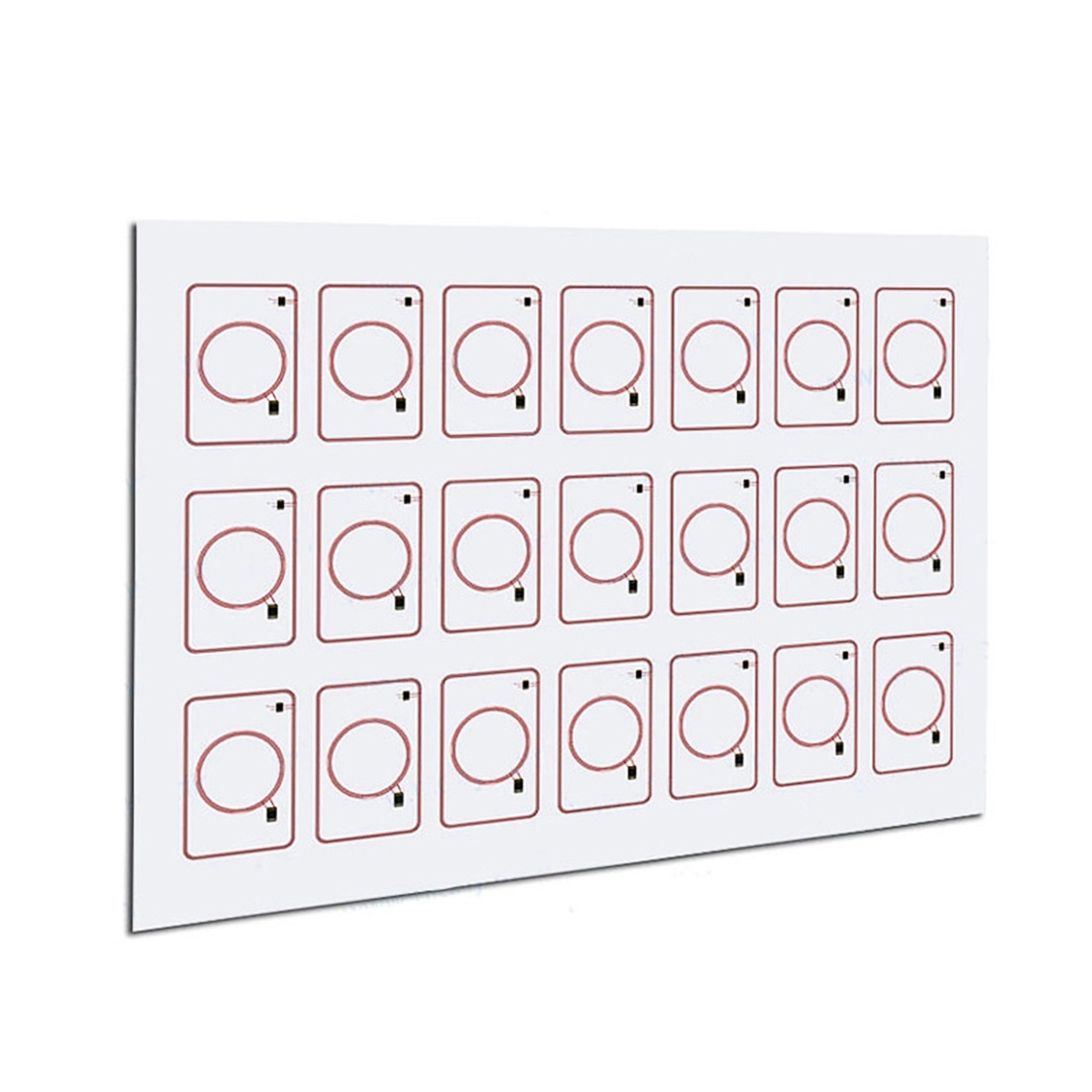

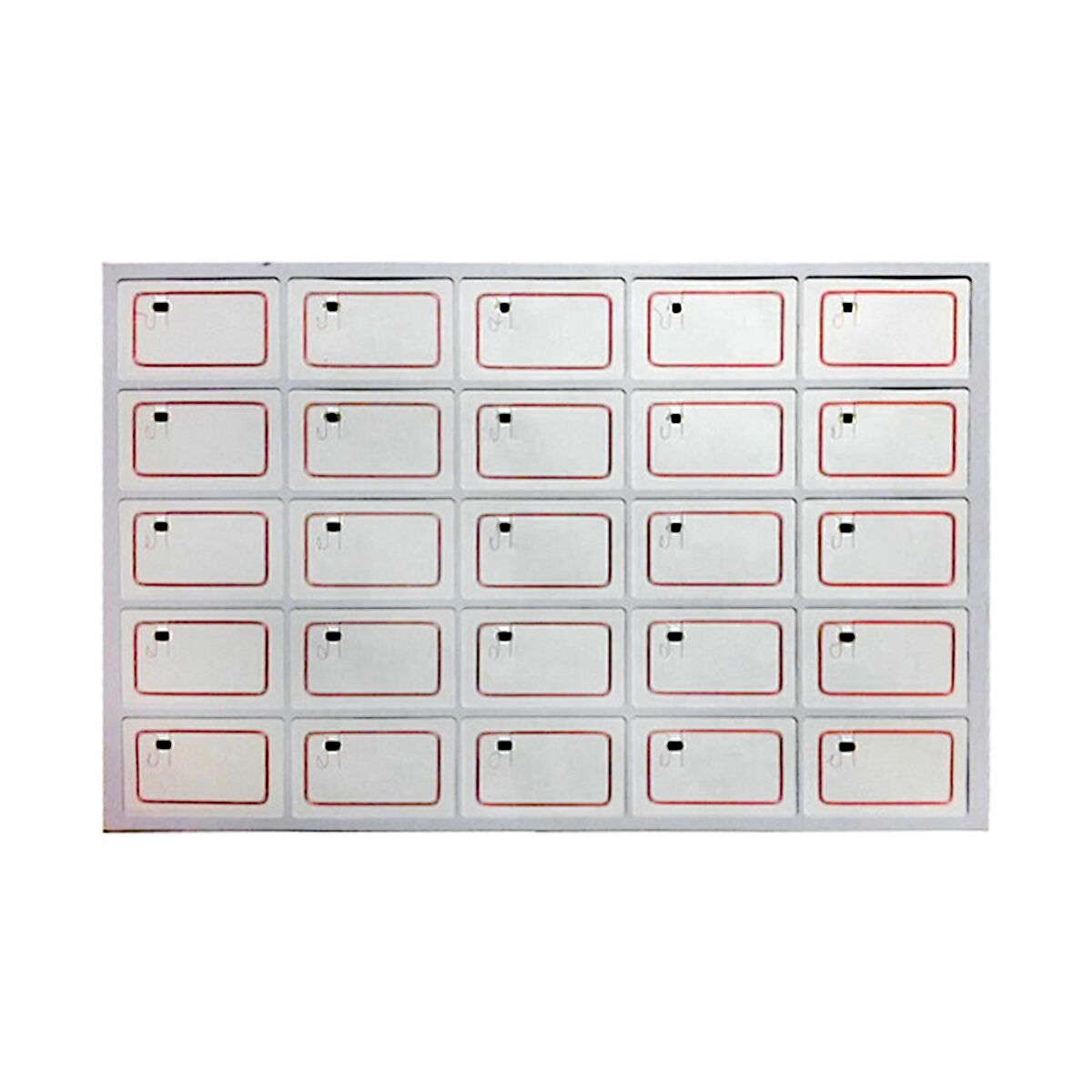

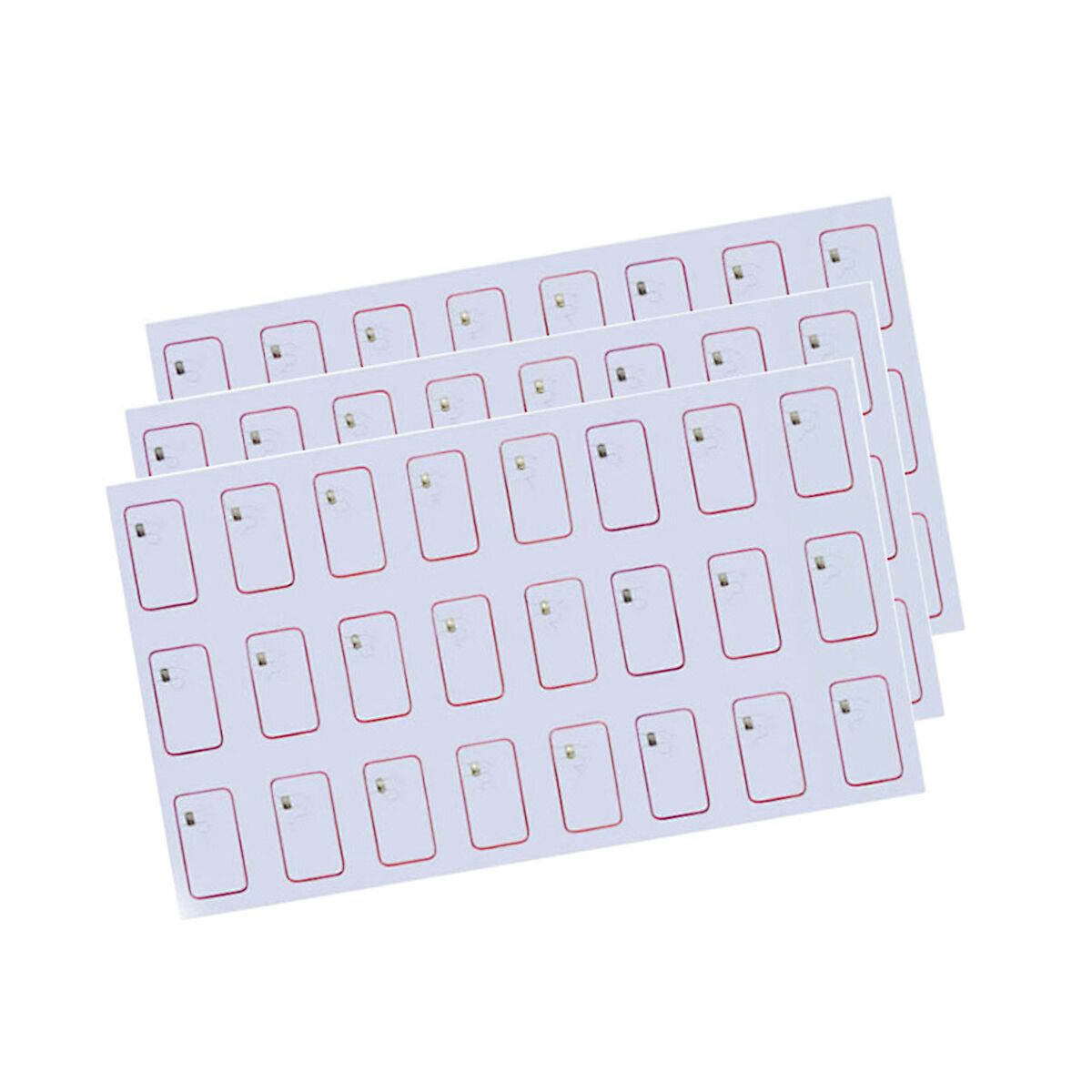

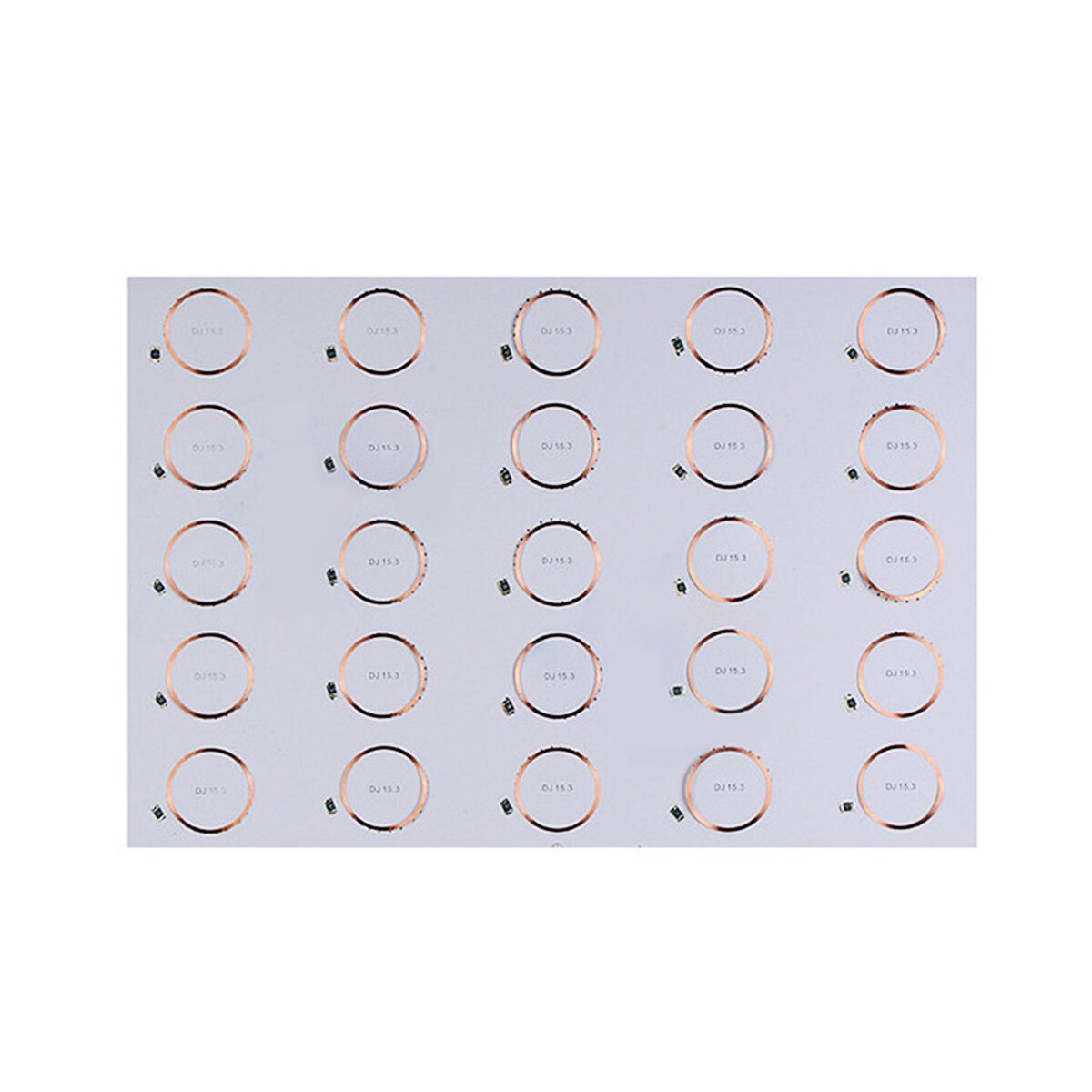

PVC Sheet inlay is a core of RFID card, which means is a semi-products of smart card and for Plastic Smart Card Laminating. RFID inlay which they are suitable for ISO standard cards and made into different thickness and various shapes for options.
| Material | PVC, PET |
|---|---|
| Thickness | LF normal ,0.6mm, Min. 0.5mm |
| Layout | 3×7, 5×5,3×8,4×8,4×6, 2×5,2×4 or any Customization of CR80 card or any unit antenna size |
| Memory | 64biy,128bit,192bit,1024bit,512bit,504bytes,888bytes are optional |
Specification:
| IC Chip | LF: TK4100 ,EM4200,EM4305,EM4450,T5577 ,Hitag1,Hitag2, Hitag S256, Hitag2048;
Fudan F08, Mifare 1K(S50, 4k(S70); N-tag213/215/216; ISSI4439; HF MF U-ltra-light /-C;MF DE-SFire 2K/4K/8K; MF P-lus-X /S 2K /4K ; I-code Sli -X/S; TI-2048;F-ELICA-LITE-S; To-paz512; UHF: Allien H3,M4QT,M4, Ucode and so on.. Dual Frequency: LF+HF, HF+UHF, LF+UHF. |
| Protocol | ISO7815,ISO11784/85,ISO14443A,ISO15693,EPC C1 GEN2 are optional |
| Dimension | 310mm x 468mm, Max. size 520mm x420mm, A4 210mm x297 or customize |
| Layout | 3×7, 5×5,3×8,4×8,4×6, 2×5,2×4 or any Customization of CR80 card or any unit antenna size |
| Thickness | HF normal 0.45mm,0.5mm, min.0.35mm |
| LF normal,0.6mm, Min. 0.5mm | |
| UHF 0.6mm, 0.5mm | |
| Memory | 64biy,128bit,192bit,1024bit,512bit,504bytes,888bytes are optional |
| Frequency | 125khz,13.56mhz,860-960mhz are optional |
| Material | PVC, PET |
| Write endurance | 100,000cycles |
| Print cut line | |
| Data Retention | 10 years |
| Working Temperature | -25°C ~ +55°C |
